ULTRA DUO PLUS 60charge

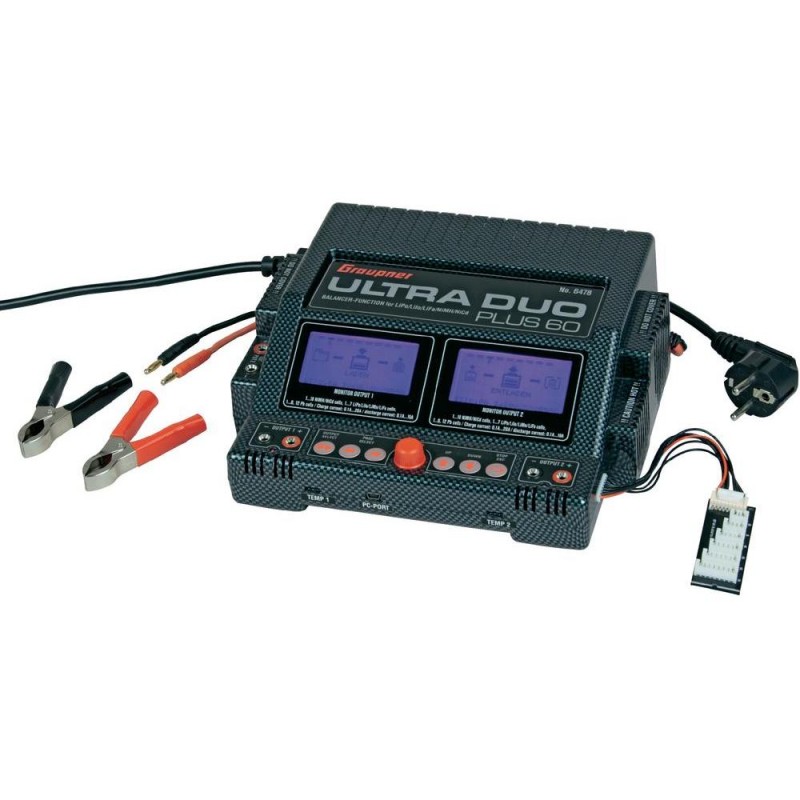

ULTRA DUO PLUS 60charge Age recommended by manufacturer: 14 years and up Computer-controlled universal fast charger With integrated lightweight switch-mode power supply for 100 ... 240 V and 12 V DC input. The charger is thus the ideal choice for use "on the road" and even abroad (USA/Japan). Two equivalent independent or dependent (CV-link mode) charger outputs Additional 12 V DC output max. 5 A e.g. for fans, Peltier coolers Graupner Balancer connection for 2 x 1...7 NiCd/NiMH/LiPo/LiIo/LiFe batteries 60 memories for storing all essential battery parameters Automatic charge, discharge, capacity measurement, battery care and conditioning for NiMH and NiCd batteries as used in model building Thanks to clearly arranged program structure and 6 buttons and rotary knob, operation is child's play Two high-contrast LCDs (128 x 64) with blue backlighting: 21 x 8 characters for displaying all relevant parameters or charge/discharge curves Can be used to charge/discharge NiMH, NiCd, LiPo, LiIo, LiMn, LiFe or lead-acid batteries Delta peak cut-off detector for NiMH and NiCd cells with adjustable delta peak voltage making full charging to 100% capacity possible Single-cell charging, ideal for glow plug batteries or cell selection Charges LiPo, LiIo, LiFe. lead cells using constant current/constant voltage method. Declining current curve after final charge voltage, with automatic charge termination Charging: NiCd/NiMH: Automatic, normal, linear, GMVIS, IMPULSE, REFLEX, REPEAK, staged charging LiPo/LiIo/LiFe: automatic, CC/CV, fast charging, CV-linked, storage Balancers Special range of discharge balancers for NiCd/NiMH batteries data storage for comparison of all important battery data Lead-acid battery chargers with optimised charging characteristic, discharge capability, adjustable discharge current for determination of battery capacity and residual capacity Tyre heating covers order no. 94711 with temperature control Motor run-in and test functions for brushed electric motors Mains function: adjustable voltage and current limiting Protected against short-circuit, overload and reverse polarity Switchable buzzer, melody can be selected Adjustable safety timer Max. charging capacity can be adjusted English/German/French/Italian Language selection Display of battery internal resistance Display of single-cell voltages for 2 x 2 ... 7 cells in NiCd/NiMH/Li mode PC USB interface for displaying battery curves Ready for connection Specification Dimensions (LxWxH) 230 x 225 x 83 mm Disconnection NiMH/NiCd Delta Peak, variable Output voltage Ausgang 3 (max. 5 A): 12 V Balancer socket 2 x 1 ... 7 NiMH/NiCd/LiPo/LiIo/LiFe cells Max. balancing current NiMH/NiCd: 300 mA, LiPo/LiIo/LiFe: 1000 mA Operating voltage 11 ... 15 V/40 A DC oder Netzteil AC 100 ... 240 V Discharge current (2 x max. 80 W) 0,1 ... 10 A All-up weight, approx. 2250 g Charge output 2 Charge facility 1 ... 18 NiMH/NiCd cells, 1 ... 7 LiPo/LiIo/LiMn/LiFe cells, 1 ... 6, 12 lead cells Charge current in mains operation (total incl. output 3 max. 120 W), in 11 ... 15 V DC operation (total max. 360 W: max. 2 x 180 W or 1 x 250 W output 1 or 2 + 60 W output 3) 2 x 0.1 A ... 20 A Max. discharge current 0,1 - 10 A
