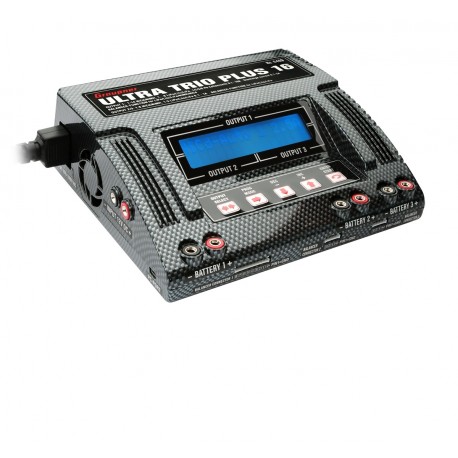

ULTRA TRIO PLUS 16charger

ULTRA TRIO PLUS 16charger Age recommended by manufacturer: 14 years and up Inexpensive computer-controlled universal fast charger With 12 V DC input and integrated lightweight switched-mode power supply for 200 ... 240 V AC mains voltage. 3 outputs for simultaneous charging of drive, transmitter and receiver batteries, for example Output 1: Graupner balancer connection for 1 ... 8 NiCd/NiMH/LiPo/LiIo/LiFe batteries Output 2.3: Graupner balancer connection for 2 ... 3 LiPo/LiIo/LiFe batteries Thanks to clearly arranged program structure and 5 buttons, operation is child's play High-contrast two-line LCD with blue backlighting for simultaneous display of all relevant parameters Automatic charge, discharge, capacity measurement, battery care and conditioning for NiMH and NiCd batteries as used in model building Can be used to charge/discharge NiMH, NiCd, LiPo, LiIo, LiMn, LiFe or lead-acid batteries Delta peak cut-off detector for NiMH and NiCd cells with adjustable delta peak voltage making full charging to 100% capacity possible Single-cell charging, ideal for glow plug batteries Charges LiPo, LiIo, LiFe cells using constant current/constant voltage method. Declining current curve after final charge voltage, with automatic charge cut-off. Chargers for LiPo, LiLo and LiFe batteries Lead-acid battery chargers with optimised charging characteristic Protected against short-circuit, overload and reverse polarity 12 V DC input, pluggable, with 4 mm banana sockets Adjustable buzzer ON/OFF or 3 ... 10 s Adjustable safety timer can be switched on/off or 10 ... 600 min Select language from English/German/French Display of battery internal resistance Display of single-cell voltages for 2 ... 8 cells in NiCd/NiMH/Li mode USB interface for displaying charge/discharge curves and for firmware upgrades Ready for connection Specification Dimensions (LxWxH) 200 x 180 x 75 mm Disconnection NiMH/NiCd Delta Peak, variable Balancer socket 1 1 ... 8 NiMH/NiCd/LiPo/LiIo/LiFe Balancer socket 2 2 ... 3 LiPo/LiIo/LiFe Balancer socket 3 2 ... 3 LiPo/LiIo/LiFe Balancing current 1 max. NiMH/NiCd: 100 mA, LiPo/LiIo/LiFe: 300 mA Balancing current 2 max. 42 mA Balancing current 3 max. 42 mA Operating voltage Mains voltage AC: 200 ... 240 V (120 W) or DC (min. 200 W): 11 ... 15 V Discharge current, output 1 (max. 40W) 0,1 ... 5 A, W All-up weight, approx. 1100 g Charge facility 1 ... 14 NiMH/NiCd, 1 ... 8 LiPo/LiIo/LiMn/LiFe, 1/2/3/6 lead cells Charge facility per output 1 1 ... 14 NiMH/NiCd, 1 ... 8 LiPo/LiIo/LiMn/LiFe, 1/2/3/6 lead cells Charge facility per output 2 1 ... 8 NiMH/NiCd cells, 1 ... 3 LiPo/LiIo/LiFe cells Charge facility per output 3 1 ... 8 NiMH/NiCd cells, 1 ... 3 LiPo/LiIo/LiFe cells Charge current, output 1 Netzteilbetrieb (max. 120 W), 12 ... 15 V DC-Betrieb (max. 150 W) 0,1 ... 10 A Charge current, output 2 0,1 - 1 A Charge current, output 3 0,1 - 1 A
