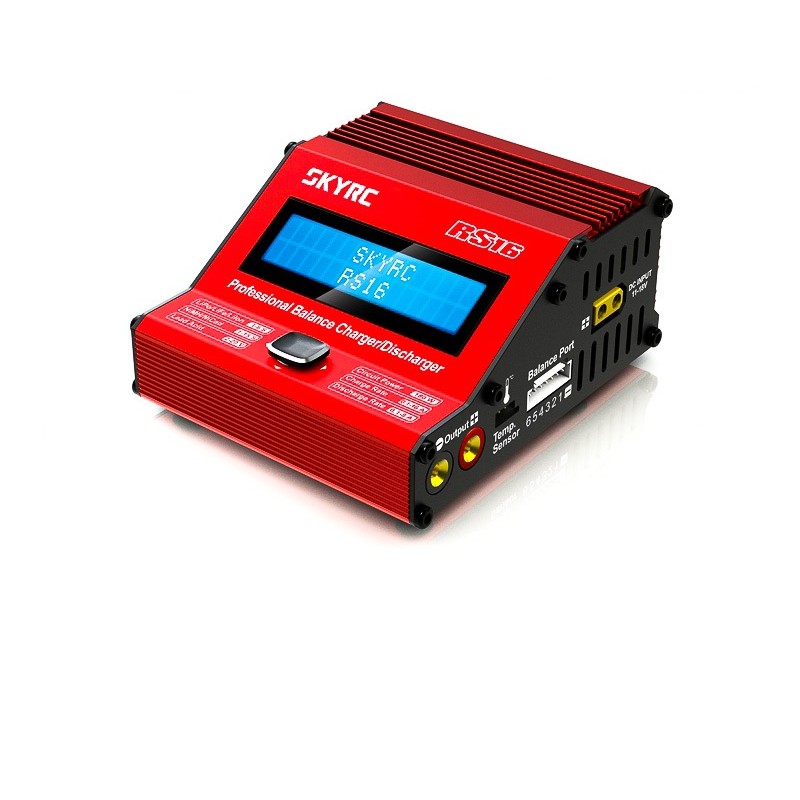

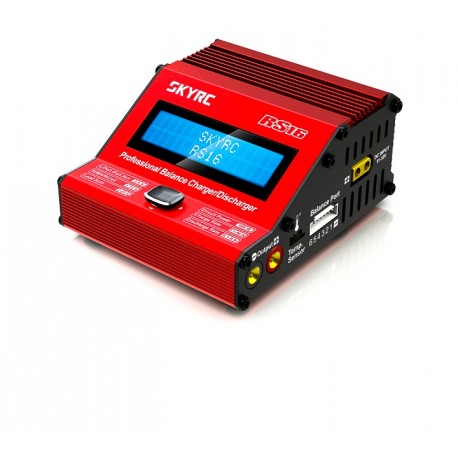

SkyRC Racing Star RS16 Balance Charger 180W Visualizza ingrandito

SkyRC Racing Star RS16 Balance Charger 180W

SK100078

Nuovo

75,00 €

Dettagli

SkyRC Racing Star RS16 Balance Charger 180W Super-compact Portable Balance Charger/Discharger SKYRC RS16 is a high-performance, micro processor control charge/discharge station with battery management suitable for all current battery types. There is an integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; the maximum charge current/power can reach 16A/180W. SKYRC RS16 represents the newest technology of chargers with its handheld super-compact portable charging system. The joystick gives the user best operational experience and also makes the charger smart and unique. There are two DC inputs, one is banana plug type and the other is XT60 type. The banana plug type in the bottom is designed for Direct Plug Docking System. Compact and Unique Design The size of SKYRC RS16 is 92x111.4x50mm which makes this product a super-compact portable charging system. Smart Cooling Fan The fan is ON/OFF automatically according to the internal temperature. Two DC inputs There are two DC inputs, one (XT60 Type )is located in the right side of the charger and the other (banana plug type) is located in the bottom. Direct Plug Docking System There is a DC output on the bottom of the charger and it is designed for docking into the eFule 230W 13.8V Switch DC Power Supply (Part No. SK- 200017). Depending on different kinds of batteries, there are different charging modes to meet users' request: LiPo,LiFe & LiIon Batteries: Normal Charge, Balance Charge, Fast Charge, Discharge, Storage NiCd/NiMH Batteries: Normal Charge, Auto Charge, Discharge, Cycle, Re-Peak PB Battery: Normal Charge & Discharge Special Features Maximum Safety Automatic Charging Current Limit | Capacity Limit | Temperature Threshold | Processing Time Limit Battery Meter The user can check battery's total voltage, the highest voltage,the lowest voltage and each cell's voltage by this charger. Terminal Voltage Control The charger allows user to set the charge/ discharge end voltage. Memory Preset The charger can store up to 10 different charge/discharge profiles for your convenience. Users can call out these data at any time without any special program setting. PC Control The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master". The Set Contains SKYRC RS16 Charger 18AWG Wire Charging Cable DC Input Power Cable 2S LiPo Hardcase Charging Lead Including Balancing Adapter Multiple Balancing Board Selection Charger Category Charger 12V Configuration 1 Outlet Cells 1-6S / 1-15 NiMH Voltage 11-18V Dimension 92mm x 111,4mm x 50mm (L X W X H) Weight 405g Content 1 pcs. Suitable for: NiMH|NiCd|LiPo|LiFePo|LiIon|Pb Performance 180W Discharging Current 0,1-8A
