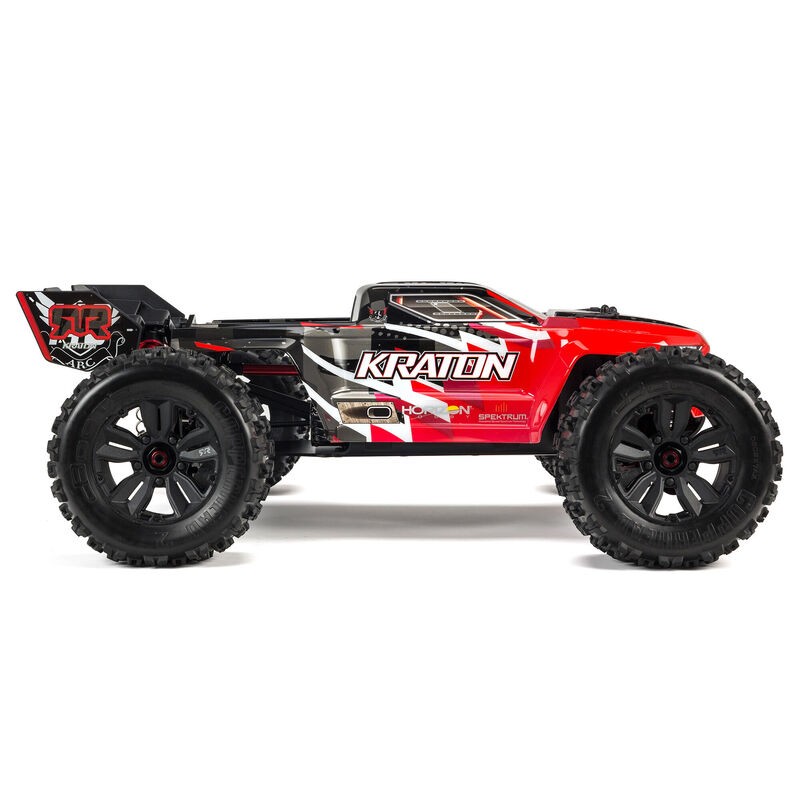

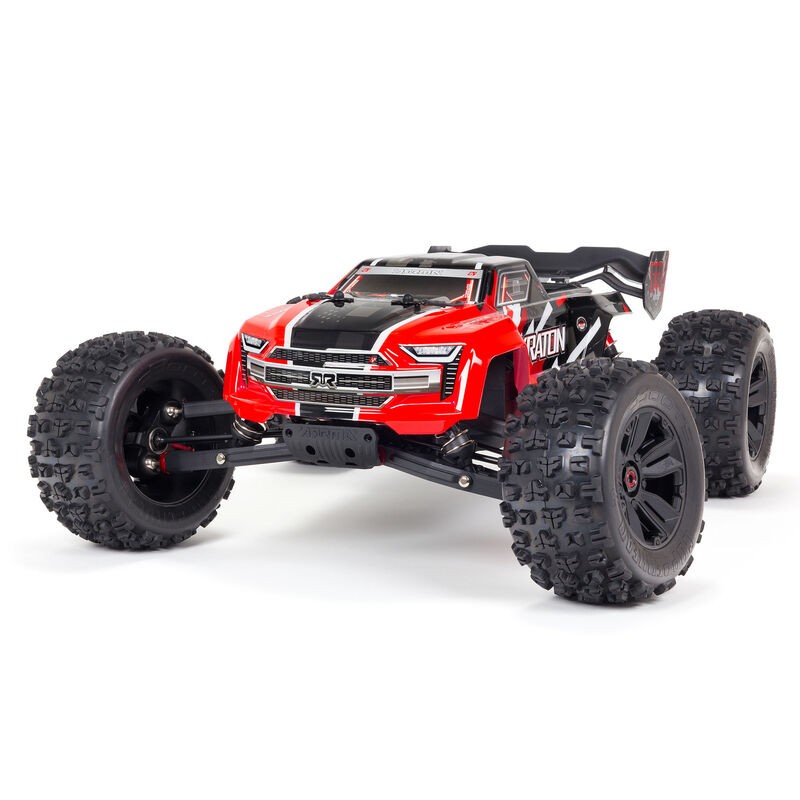

1/8 KRATON 6S V5 4WD BLX Speed Monster Truck with Spektrum Firma RTR, Red

Introduction

Driven by an updated, 6S-capable power system and supported by a strengthened chassis design, the ARRMA® KRATON™ 6S BLX 4WD Speed Monster Truck is ready out of the box to reach incredible speeds for thrilling, all-terrain bashing.

Features

Overview

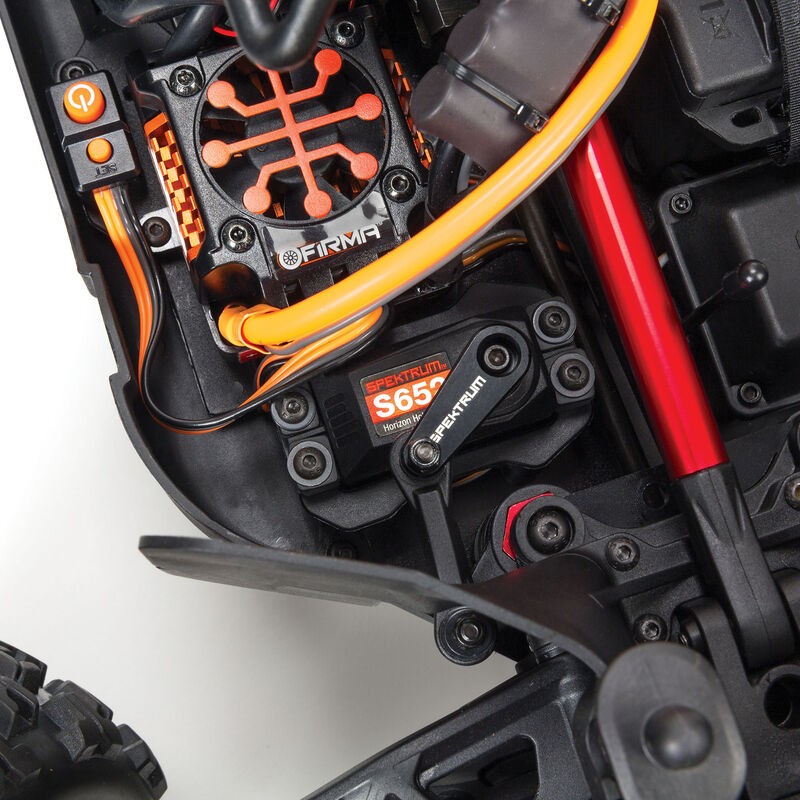

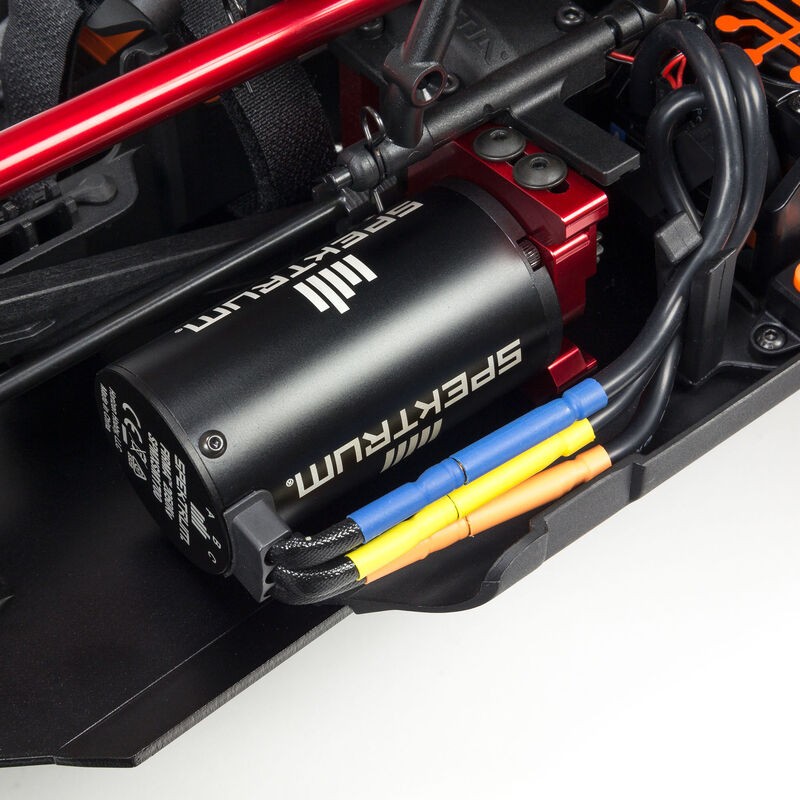

ARRMA® engineers have outfitted the KRATON™ 6S BLX 4WD with a brushless power system that now features the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination delivers incredible torque, acceleration and speed. Heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo which is 32% stronger and 5% faster than the previous version's ADS-15M servo. Add your favorite 4S or 6S LiPo battery and watch this monster truck smash your speed expectations — up to 60+ MPH in optimum conditions with a 6S LiPo battery and the included optional speed pinion gear.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them. Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With adjustable oil-filled shocks soaking up the bumps, the KRATON™ 6S BLX 4WD Speed Monster Truck blasts over dirt, asphalt and grass — all terrain and all conditions. The shocks are mounted on black-anodized aluminum towers. Multi-split-spoke wheels come outfitted with super-aggressive, multi-surface dBoots® COPPERHEAD 2™ tires. A high downforce wing helps keep the vehicle grounded. Everything in the design contributes to confident control and responsive handling at high speeds.

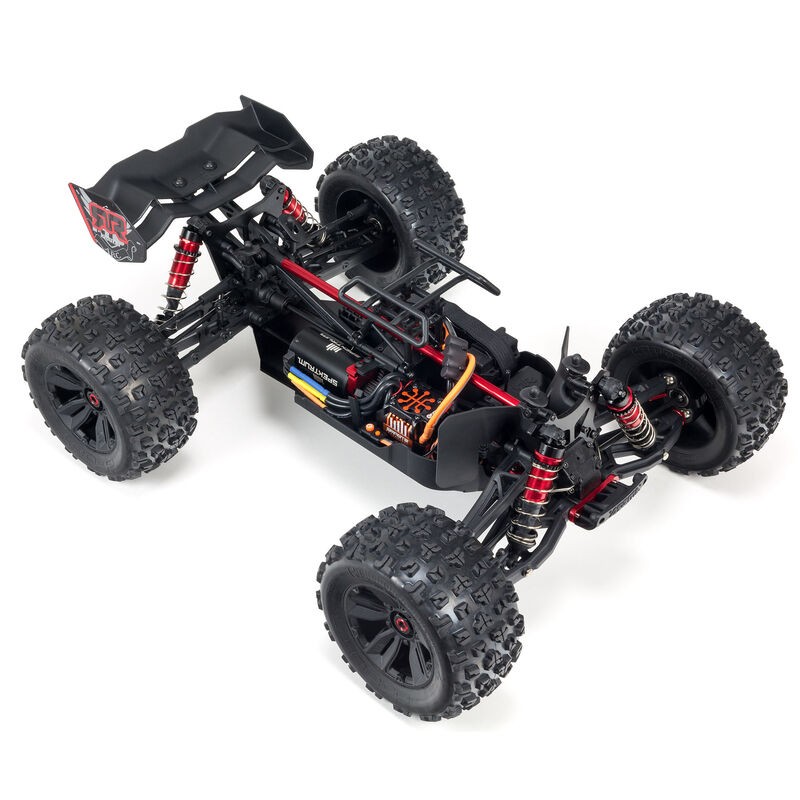

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened anodized aluminum chassis as the foundation for the KRATON™ 6S BLX 4WD. A center body support, aluminum center brace and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just seven bolts. Topping it all off is a monster truck body with streamlined good looks, featuring an eye-catching red/black or blue/black trim and detailed decals.

UPDATED CHASSIS DESIGN

Wider rear section and 3D form introduced in key areas to greatly improve strength.

SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

UPDATED REAR SUSPENSION GEOMETRY

• Updated rear shock tower geometry works in conjunction with updated rear suspension arm geometry to provide a plusher rear end
• More compact rear shock tower, being less exposed, is better protected from being bent during upside-down impacts

  EASY-ACCESS DIFFERENTIALS

  Front and rear diffs are quickly and easily accessed for rapid tuning and maintenance.

  Approximate Assembly Time	No assembly required
  Ball Bearings	Full set
  Battery	Sold Separately
  Body	Painted, decaled and trimmed
  Brakes	User programmable
  Charger	Sold Separately
  Chassis	0.12" (3mm) 6061-T6 aluminum
  Completion Level	Ready-To-Run
  Differential	3-gear
  Drivetrain	4WD
  Drive Type	Forward/Brake/Reverse
  Final Drive Ratio	17.92
  Front Shock Spring Rate	6.2lbs/in (1.09N/mm)
  Front Track	18.15" (461mm)
  Power Type	Electric
  Gear Pitch	1.0MOD
  Ground Clearance	1.85" (47mm)
  Inner Tire / Outer Wheel Diameter	3.8 in
  Internal Gear Ratio	4.3
  Motor Size	4074
  Motor Type	Brushless - Sensorless
  Pinion	12T
  Product Height	7.68" (195 mm)
  Product Length	23.39" (594 mm)
  Product Weight	10.67lb (4.85kg)
  Product Width	18.15" (461 mm)
  Radio	Included
  Rear Shock Spring Rate	5.0lbs/in (0.87N/mm)
  Rear Track	18.15" (461mm)
  Receiver	Included
  Scale	1/8
  Servos	Included
  Shock Type	Aluminum body oil-filled adjustable
  Speed Control	Included
  Spur Gear	50T
  Suspension	Independent
  Tire Tread	dBoots COPPERHEAD 2
  Tire Type	Multi-terrain
  Vehicle Type	Monster Truck
  Water-Resistant	Yes
  Wheelbase	14.84" (377mm)
  Wheel Hex Size	17mm
  Wheel Type	Five split-spoke monster truck
  Wheel Width	3.3" (81.5mm)
