1/10 Capra 1.9 Unlimited 4WD Trail Buggy Brushed RTR, Green/Red

Modello AXI03000T2

Condizione Nuovo

L'Axial con la creazione del Capra 1.9 ha raggiunto la perfezione nella guida puramente da Off-Road

Maggiori dettagli

Invia ad un amico

Invia ad un amico

1/10 Capra 1.9 Unlimited 4WD Trail Buggy Brushed RTR, Green/Red

L'Axial con la creazione del Capra 1.9 ha raggiunto la perfezione nella guida puramente da Off-Road

Destinatario :

Nome del tuo amico ^* :

Indirizzo email del tuo amico ^* :

^* Campi richiesti

o Annulla
Stampa

499,00 €

Quantità

Aggiungi alla lista dei desideri

Dettagli

Features

Transmission with DIG function enables a tighter turning radius by locking the rear axle for FWD power only.
Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance.
Includes all-metal gears, from the center transmission to the lockers and portal axles.
Tube chassis design offers optimum clearance plus realistic scale looks.
All pivot points are on stainless steel balls for a durable, long-lasting suspension point.
Includes Nitto Trail Grapplers 1.9 Monster tires mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels.

Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring.
All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain.
Durable, machined aluminum universal.
540-size, 35T brushed motor with enlarged cooling ports delivers an even balance of speed and technical crawling.
Spektrum™ STX3 3-channel, 2.4GHz radio system and receiver operate the DIG feature along with other functions.
Axle-mounted servo improves steering control in full articulation.
Finely tuned suspension geometry delivers the best crawling capabilities.

Overview

The ready-to-run Axial® Capra™ 1.9 Unlimited Trail Buggy is a “new from the ground up” design that any RC enthusiast eager for cutting-edge crawling will appreciate. Its Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin for the best crawling performance. With the included Spektrum™ STX3 3-channel transmitter and DIG transmission, you can also switch on the fly between 4WD and FWD — locking the rear axle whenever you need the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on real-world inspired Nitto Trail Grappler 1.9 tires mounted to licensed Raceline 3-piece molded beadlock wheels. For pioneering performance in an RC trail buggy with factory-assembled ease, choose the Capra 1.9 Unlimited RTR. Then just add batteries and get crawling!

Needed to Complete

Vehicle Battery and charger

What's in the Box?

(1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD RTR with:
- (1) Spektrum™ STX3 2.4GHz 3-Channel Radio System
- (1) Dynamite® AE-5L Brushed ESC
- (1) 540-Size 35T Brushed Motor
(1) Product Manual
CURRIE F9 PORTAL AXLES

The Currie F9 Portal Axles add substantially more ground clearance at the diff pumpkin while also providing an excellent 7.39:1 gear ratio. Completely ball bearing driven, and metal gears throughout for durability.

HI-PINION GEARS

The ring and pinion gears are machined steel, including the locker. The design utilizes a six bolt design for durability.

DIG TRANSMISSION

The ground up designed transmission features a "Dig" function. With the new STX3 transmitter, the user can "switch" between 4WD and locking the rear axle while powering with front drive only, allowing for tighter turning radius on the rocks. The transmission also includes a full set of ball bearings and all metal internal gears for strength and durability. Micro Dig Servo SPMSSX107 included!

UNIVERSAL AXLE SET

Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.
- Up to 45 degrees of steering
- Smooth action for an efficient drivetrain
- Compact yet durable design
- Hardened steel construction
  STAINLESS STEEL PIVOT BALLS

  All pivot points are on stainless steel balls that provide a durable, long-lasting suspension point.

  SKIDPLATE WITH BOAT SIDES

  The Capra features a small skidplate footprint with boat sides to help maneuver and slide over rough, challenging obstacles.

  STAINLESS STEEL STEERING LINKS

  The steering links are also made from 6mm stainless steel, offering precise steering and durability.

  LARGE BORE ALUMINUM SHOCKS

  The oil-filled shocks are an all-new design with hard anodized, threaded shock bodies and a single coilover spring. Their increased bore size creates more fluid volume for better performance. A bleed screw helps to bleed air from the shock during assembly for greater consistency. The shocks are also tunable so you can achieve the best dampening rate.
  - Springs included:
  - AXI233006 Spring 13x70mm 1.72lbs/in Red (2) Soft
  - AXI233008 Spring 13x70mm 2.4lbs/in Green (2) Firm
    4-LINK SUSPENSION

    Fine-tuned suspension geometry with multiple mounting locations for the upper link mounts to provide the best crawling capabilities.

    NITTO TRAIL GRAPPLER TIRES

    Get a secure grip on dirt, rocks, and all other off-road trails from the S30 compound Nitto Trail Grappler 1.9 tires.

    3-PIECE BEADLOCK WHEELS

    For striking scale looks and serious trail performance, Axial® has outfitted the Capra™ with 3-piece licensed Raceline beadlock wheels.

    REALISTIC INTERIOR

    Realistic scale details include: polycarbonate interior tray with molded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more!

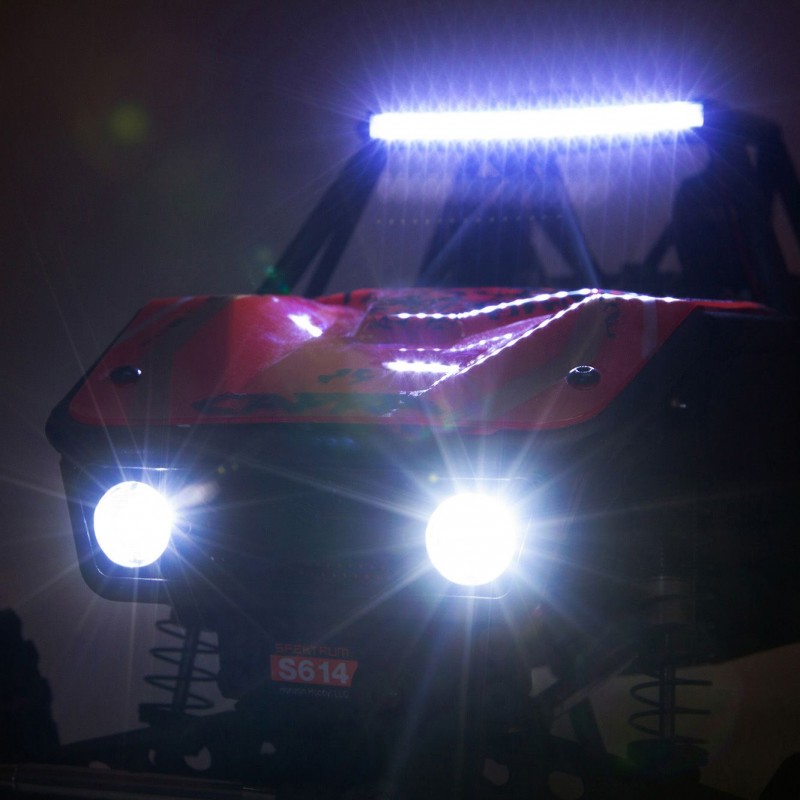

    GRILLE AND HEADLIGHT BUCKETS

    The molded plastic front grille features two clear plastic headlight lenses with light buckets and a white LED light installed in each. Behind the grille, under the hood, are two hood mounts with clips. Remove the clips to raise the hood up and gain access to the battery tray.
