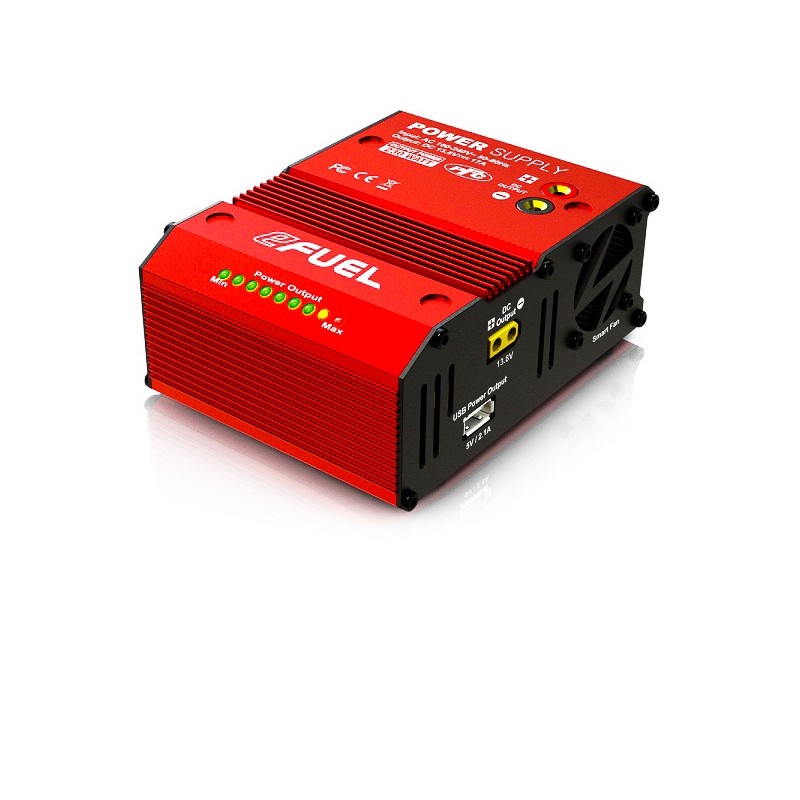

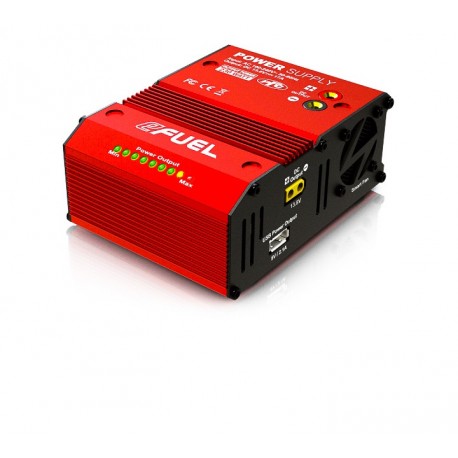

SkyRC Power Supply eFuel 230W 17A Super Compact Size EFUEL 230W/17A Power Supply The eFUEL can convert standard household power 100-240V AC to 13.8V DC power and supply max 17 amperes of continuous power. It delivers smooth and reliable power and it not only enables RacingStar RS16 Charger but also RacingStar RSTW Tire Warmer to dock directly without the use of messy DC cables. It can also be used with other DC devices. Active PFC Active PFC Design: smaller AC input current less interference, and conform to CE regulations. Power Factor Correction (PFC)allows power distribution to operate at its maximum efficiency. There are two types of PFC, Active PFC and Passive PFC The preferable type of PFC is Active Power Factor Correction (Active PFC) since it provides more efficient power frequency. because active PFC uses a circuit to correct power factor, active PFC is able to generate a theoretical power factor of over 95%. Active Power Factor Correction also markedly diminishes total harmonics, automatically corrects for AC input voltage, and is capable of a full range of input voltage. Two DC Outputs Two DC power outputs, total output power up to 17 amperes. Output 1 is located on the top and the output 2 is located on the right side of the power supply. AC Input 100-240V Worldwide operation: need not any alternative switcher, worldwide safe operation. Nine LED indicators Nine LED indicates output power from minimum to maximum. 5V / 2.1A USB Ports USB power 5 volts, 2100mA for iPad, mobile phone, digital cameras and etc. Smart Cooling Fan It will turn on at 50 °C upon the temperature automatically. Safety Features Over current, over temperature protection. Short-circuit protection on output, safer and more reliable. Direct Plug Docking System There is DC output on the top of the power supply and it is designed for use with SKYRC RS16 Charger and SKYRC RSTW Tire Warmer. A pair of dual banana plugs which is used to connect the Charger/Tire Warmer and power supply are included in the package. Technical Data: Dimensions (L*W*H): 125,7 x 92,7 x 50,5mm Input Voltage: 100-240V AC Input AC Frequency: 50-60Hz Output Voltage: 13.8V DC±0.2V Output Current: 17A±0.5A Current Overload Protection: ≥17.5A 500MS Input Fuse: 5A Fuse Output Voltage Ripple: 0.98 Over Temperature Protection: 65℃ Cooling Method: Cooling Fan Operating Temperature: 0-40℃ Operating Humidity: 0-90% Net weight: 602g
