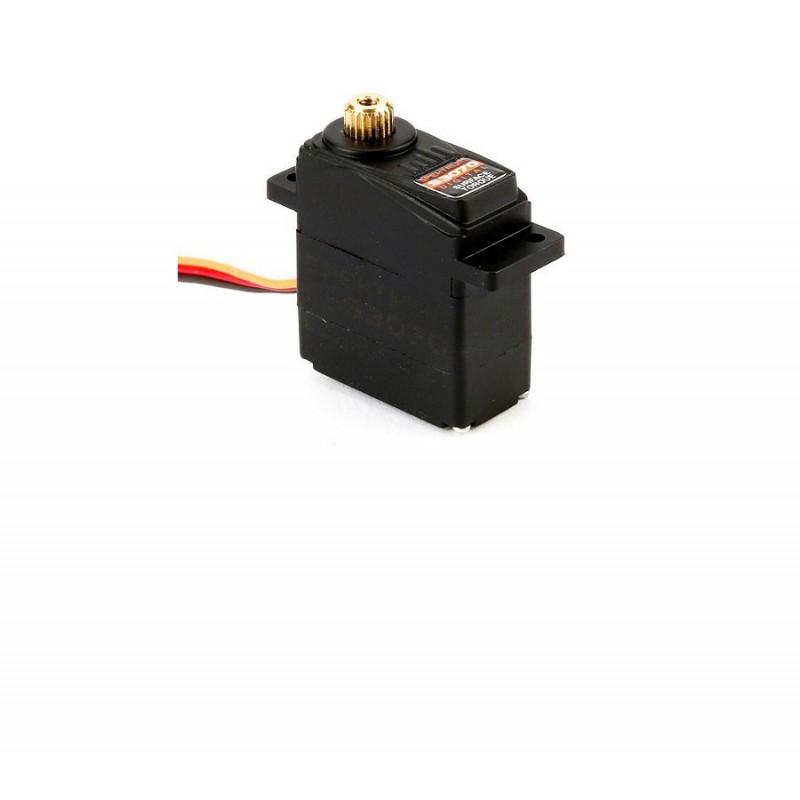

S3070 Digital Sub-Micro Surface Servo: Water Resistant by Spektrum
Product Description
Key Features
The S3070 is the ultimate upgrade for the steering servo in your Losi 1/16th scale SCT, Mini LST, Mini Sprint, or Mini Late Model
Water resistant design protects electronics from moisture
Precise digital control with a durable all metal gear train
28 oz.-in. @ 6V of torque make the S3070 a powerful option for mini vehicle applications
Quick response of 0.11 sec/60 degrees @ 6V is noticeably quicker than stock servos
Ball bearing design reduces resistance in gear train allowing for maximum performance
Overview
The S3070 is a durable, high performance, high accuracy digital servo perfect for use in most mini 1/12-1/18 size vehicles. With metal gears, high torque, and high speed, it will be a nice performance boost to the stock servo in the mini vehicles.
Specs
Bearing: Single
Connector Wire Length: 10 in (254mm)
Gear Material: Brass
Gear Type: Metal
Height: 1.01 in (25.7mm)
Length: 0.89 in (22.6mm)
Motor Type: Coreless
Servo Type: Digital
Servo Voltage: 4.8 - 6.0V
Size Category: Minis and Micros
Speed: 0.13 sec/60 deg @ 4.8V; 0.11 sec/60 deg @6.0V
Speed (at 4.8V): .10 - .14 sec
Spline Count: 21 Teeth
Torque: 22 oz-in (1.58kg-cm) @ 4.8V; 27 oz-in (1.94kg-cm) @6.0V
Torque (at 4.8V): 20 - 39 oz-in
Weight: 0.5 oz (14.2g)
Width: 0.45 in (11.4mm)
Wire Gauge: 24AWG
