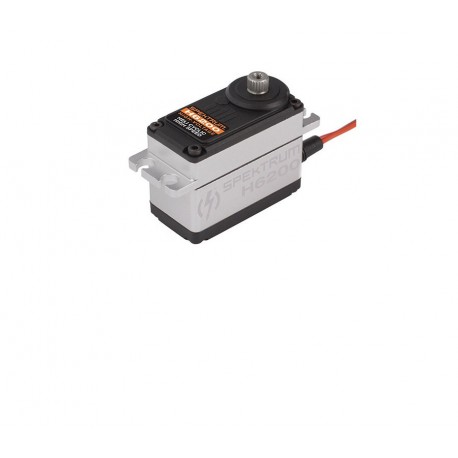

H6200 HV Digital High-Speed Heli Cyclic MG Servo by Spektrum

H6200 HV Digital High-Speed Heli Cyclic MG Servo by Spektrum Product Description Key Features Quick release for servo leads simplify wiring and maintenance Designed from the ground up for flybarless rotor control Low momentum gear train and motor design Quick release servo leads HV compatible (up to 8.4V) 0.06 sec/60 deg transit speed at 8.4V Metal gears Aluminum center section case Frequency: 200Hz Overview This is a high voltage, digital, high speed cyclic servo for 550 to 700 size helis. These servos are are purpose built for flybarless helicopters and allow for easy, clean wiring with quick release servo leads. Specs Application: 550- to 700-class helis Bearing: Dual Bushing Or Bearing: Bearing Gear Type: Metal Height: 1.25 in (31.8mm) Length: 1.61 in (40.9mm) Motor Type: Coreless Servo Type: Digital Servo Voltage: 4.8 - 8.4V (High Voltage) Size Category: Standard Speed: 0.08 sec/60 deg @ 6.0V; 0.06 sec/60 deg @ 8.4V Speed (at 4.8V): .05 - .09 sec Torque: 139 oz-in (10.0 kg-cm) @ 6.0V; 187 oz-in (13.5 kg-cm) @ 8.4V Torque (at 4.8V): 100 - 199 oz-in Weight: 2.2 oz (62.4 g) Width: 0.82 in (20.9mm)
