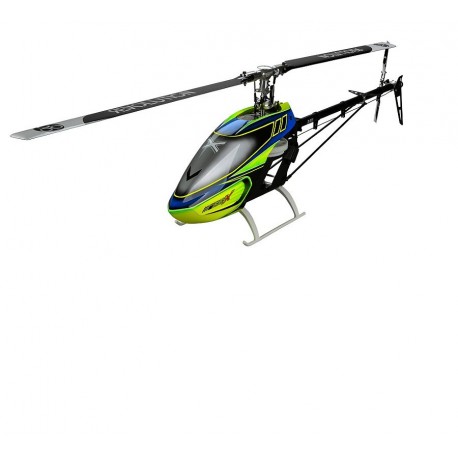

700 X Pro Series Kit by BLADE

Product Description Key Features Integrated bearing block servo mount design with optimized geometry Direct-to-swash, flybarless head design 2mm carbon fiber main frames CNC machined aluminum head block CNC machined aluminum swashplate Dual ball bearing supported, 12mm hollow steel main shaft Motor mount with integrated pinion support Configurable, quick change battery tray Torque-tube driven tail with aluminum tail boom and case Dual point tail pitch slider and balanced tail grips Captured servo ball link arms Two flybarless unit mounting locations (forward and aft) Needed To Complete - 6+ Channel Transmitter - Receiver - Servos - Speed Control - Motor - Battery - Charger - Building Tools Specs Type: 700-class collective-pitch electric flybarless helicopter Swashplate Type: 120-degree CCPM Main Rotor Diameter: 64.4 in (1635mm) Main Rotor Blade Length: 690mm Main Blade Material: Carbon fiber Tail Rotor Diameter: 12.0 in (306mm) Tail Rotor Blade Length: 115mm Tail Blade Material: Carbon fiber Main Motor Size: 480-560Kv brushless outrunner, 4x30mm bolt pattern Battery: (2) 22.2V 6S 4400-5000mAh Li-Po Speed Control: 100-160A HV brushless ESC Pinion Size: 13 tooth Main Gear Ratio: 10.1:1 Tail Drive: Shaft Length: 53.1 in (1350mm) Width: 5.63 in (143mm) Height: 15.6 in (395mm) Flying Weight: 11.0-11.6 lb (5.0-5.8 kg) Approximate Flight Time: 4 minutes Number of Channels: 6 channels Is Assembly Required: Yes Assembly Time: 7-10 Hours Size/Scale: 700 Rotor Type: Collective Pitch Single Rotor Experience Level: Professional Completion Level: Kit Recommended Environment: Outdoor
