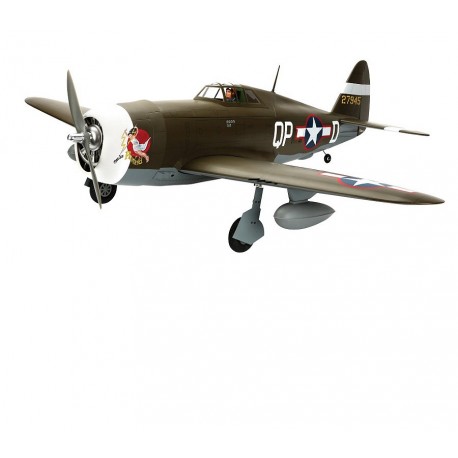

P-47D-1 Thunderbolt 60 ARF

P-47D-1 Thunderbolt 60 ARF by Hangar 9 Specs Wingspan: 67.0 in (171 cm) Overall Length: 58.0 in (147 cm) Wing Area: 825 sq. in. (53.2 sq. dm.) Flying Weight: 10.3-11.5 lb (4.7-5.2 kg) Engine Size: 0.61-0.91 2-stroke glow, 1.00-1.25 4-stroke glow, 15cc 2-stroke gas Motor Size: Power 60 Radio: 5+ channel radio system (6+ channels for retracts) Servos: 7 standard servos required (6 for EP) Recommended Receiver Battery: 5-cell 6.0V 2700mAh NiMH receiver pack CG (Center of Gravity): 4-3/16 in (106mm) back from the leading edge of wing and wing root Prop Size: 12-16 in (305-406mm) diameter Spinner Size: 1.0 in (25mm) spinner nut included Speed Control: 80-amp brushless Recommended Motor Battery: 22.2V 6S 5000mAh 30C LiPo Flaps: Yes Retracts: Optional Control Throw (Ailerons): Low: 10mm up, 8mm down, 20% expo; High: 16mm up, 14mm down, 25% expo Control Throw (Elevator): Low: 14mm up/down, 20% expo; High: 20mm up/down, 25% expo Control Throw (Rudder): Low: 20mm right/left, 20% expo; High: 30mm right/left, 25% expo Control Throw (Flaps): Mid: 32mm down; Full: 60mm down Is Assembly Required: Yes Assembly Time: 15-20 Hours Plane Type: Scale Military Experience Level: Intermediate Power Plant Size: .61-1.00 2-Cycle Glow Recommended Environment: Outdoor Fuel Type: Glow
