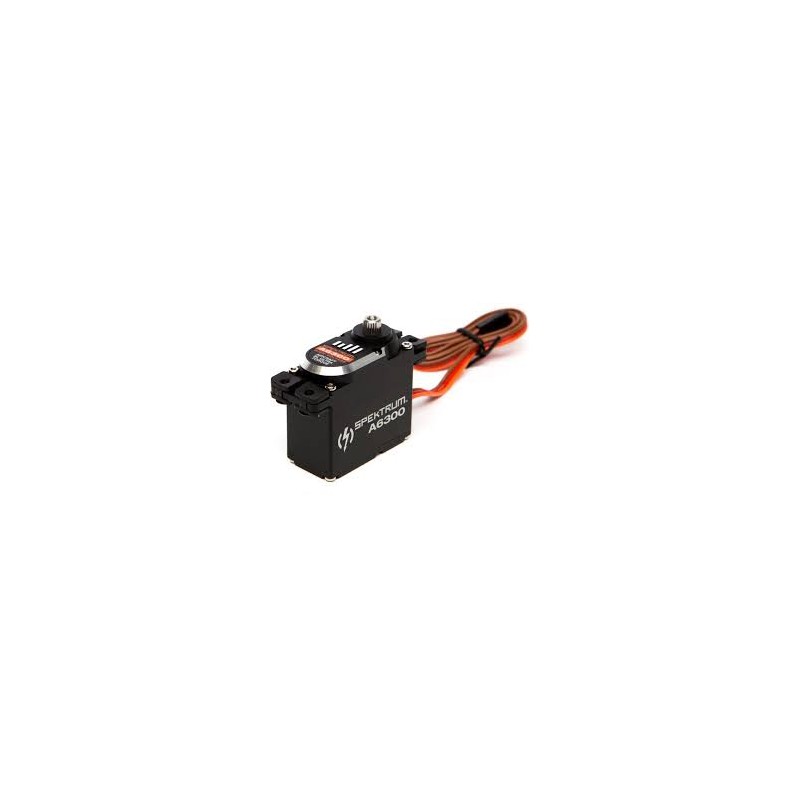

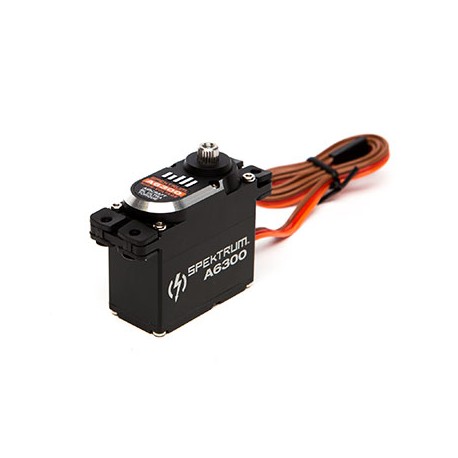

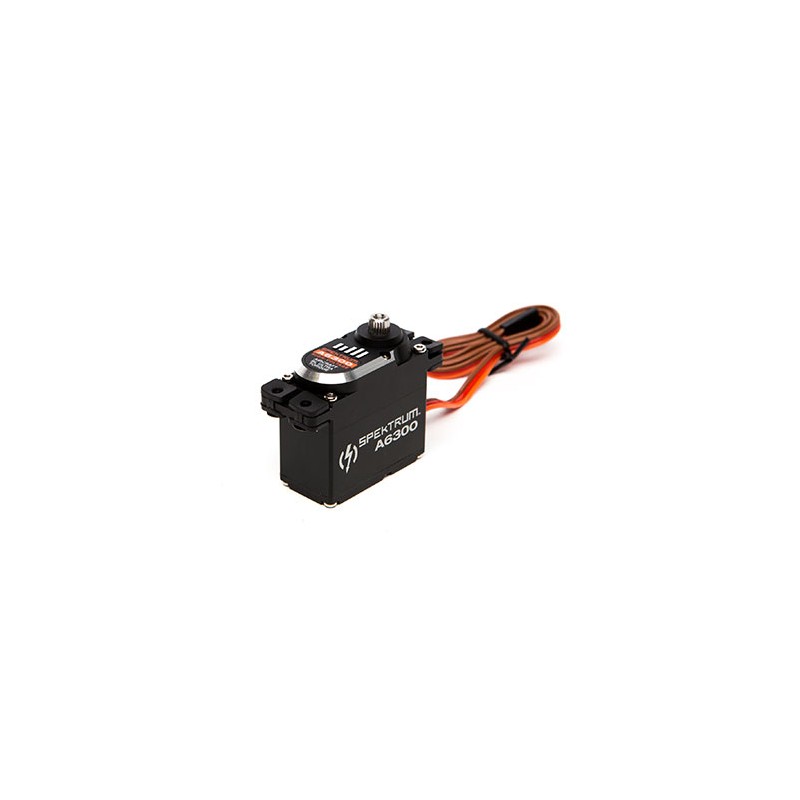

A6300 HV Ultra Torque Brushless

PRODUCT SPECIFICATIONS

Size Category:

Standard

Type:

Digital

Application:

Airplane

Torque:

378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V

Speed:

0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V

Length:

1.57 in (40mm)

Width:

0.79 in (20mm)

Height:

1.49 in (37.8mm)

Weight:

2.81 oz (79.80 g)

Bushing Or Bearing:

Bearing

Bearing:

Dual

Motor Type:

Brushless

Connector Type:

Z-Connector

Gear Type:

Metal

Gear Material:

Metal

Voltage:

6.0-8.4V

Deadband:

<1ms

OVERVIEW

The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.

The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.

The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobats, jets or any application where massive amounts of torques and holding power are a must.
